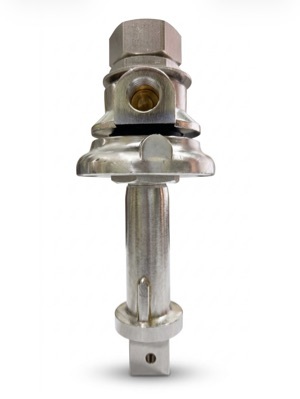

17.5kv/1000amp Hv metal parts

Name: 17.5kv/1000amp Hv metal parts
Brand: PD Transformer Insulation
Price: 6600.0 INR
Availability: InStock

Price 6600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

17.5kv/1000amp Hv metal parts Specification

Rated Voltage
17.5kV

Dimension (L*W*H)
165mm x 55mm x 55mm (approx.)

Cooling Type
Natural Air Cooling

Standard
IEC 62271-200, IS 3427

Load Loss
65W

Capacity
1000A continuous

High Voltage
17.5kV

Operating Temperature
-40C to +85C

Product Type
HV Metal Contact/Fixing Part

Material
Copper Alloy, Electroplated for conductivity and corrosion resistance

Output
Conductive path for high voltage passage

Frequency (MHz)
50/60 Hz

Efficiency
99%

Phase
Three Phase

Usage
High Voltage Switchgear/Breakers

Power Scope
Up to 17.5kV, 1000A

Weight
Approx. 1.6 kg

Corrosion Resistance
High, suitable for harsh humidity and pollution environments

Short Time Withstand Current
Up to 25kA for 3 seconds

Insulation Level
BIL 95kV

Surface Treatment
Nickel/Silver Plated

Contact Resistance
30

Flammability Class
Meets UL94-V0 for plastics used (if any insulators present)

Application Environment
Indoor/Outdoor Switchgear assemblies

Mechanical Endurance
>2000 operating cycles

Mounting Configuration
Bolt-on type with precision alignment

Maintenance
Low, requires only periodic visual inspection

17.5kv/1000amp Hv metal parts Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Vadodara

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

About 17.5kv/1000amp Hv metal parts

Experience commanding performance with our 17.5kV/1000A HV metal parts-crafted from premium copper alloy and finished with inestimable nickel/silver plating for fresh conductivity and scarce corrosion resistance. Designed to deliver a value-rich, efficient pathway for high voltage, these uncommon metal parts handle short time withstand currents up to 25kA (3 sec) with commanding safety and reliability. Boasting a remarkable 99% efficiency, robust bolt-on mounting, and a low-maintenance build, they ensure enduring service for indoor/outdoor switchgear, precisely aligning with IEC/IS standards. The ultimate choice for reliability in India's harshest environments.

Exceptional Features & Versatile Applications

Our 17.5kV/1000A HV metal parts stand out with their extra features such as a unbeatable 95kV BIL insulation, UL94-V0 compliant flammability standards, and high mechanical endurance above 2000 cycles. Capable of performing in both indoor and outdoor high-voltage switchgear and breakers, their uncommon corrosion resistance makes them perfect for humid and polluted environments. Low contact resistance and maintenance further ensure a long-lasting, efficient service in varied utility, industrial, and infrastructure applications.

Reliable Supply, Cost-Effective Pricing, and Market Reach

We supply 17.5kV/1000A HV metal parts with exceptional reliability across India at the lowest price, aligning with your budget and proposal amount. With a robust supply chain, our manufacturer's capacity ensures timely deliveries even for large-scale projects. Flexible payment terms accommodate client requirements, supporting seamless transactions. Serving the main domestic market, we consistently provide value, responding promptly to customization and bulk inquiries for enhanced operational flexibility and customer satisfaction.

FAQ's of 17.5kv/1000amp Hv metal parts:

Q: How are the 17.5kV/1000A HV metal parts typically used in electrical systems?

A: These metal parts primarily serve as conductive paths in high voltage switchgear and breaker assemblies, ensuring reliable passage of currents up to 1000A at 17.5kV in both indoor and outdoor environments.

Q: What benefits do nickel/silver plating and copper alloy provide?

A: Nickel or silver plating over a copper alloy offers commanding corrosion resistance, consistent electrical conductivity, and inestimable durability, making these parts a superior choice for harsh environmental conditions.

Q: When should periodic visual inspection be conducted?

A: Periodic visual inspection should be done as part of a routine maintenance schedule, recommended at least annually or in accordance with site operating practices, ensuring optimal condition and safe operation.

Q: Where can these HV metal parts be installed?

A: These HV metal parts are designed for installation in high voltage switchgear and breaker units used in substations, utility networks, industrial plants, and infrastructure requiring robust and efficient power distribution.

Q: What is the process for mounting these parts?

A: Installation utilizes a bolt-on configuration with precision alignment, ensuring both secure mechanical fixation and excellent electrical contact as per IEC 62271-200 and IS 3427 standards.

Q: How do these parts perform under harsh humidity or polluted conditions?

A: Thanks to their uncommon corrosion resistance and robust electroplated coating, these parts maintain high performance and longevity even in challenging environments with high humidity or pollution.
