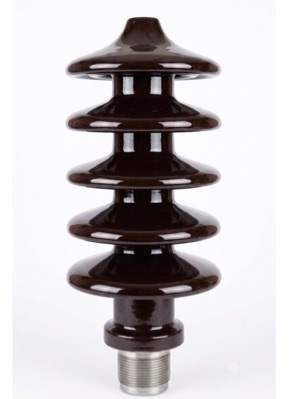

36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH

Send Inquiry

Request To Call Back

36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH

Name: 36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH
Brand: PD Transformer Insulation
Price: 1350.0 INR
Availability: InStock

Price 1350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH Specification

Capacity
250 Amps

Cooling Type
Natural air-cooled

Operating Temperature
-40C to +50C

Dimension (L*W*H)
Approx. 330 mm x 110 mm x 110 mm (varies by manufacturer)

Load Loss
Negligible, mainly designed for insulation

Rated Voltage
36 kV

High Voltage
36,000 Volts

Standard
IS 8603

Product Type
Porcelain Bushing

Material
High-grade glazed porcelain

Frequency (MHz)
50 - 60 Hz (Typically used for power transmission)

Efficiency
High dielectric strength and mechanical reliability

Phase
Suitable for single and three-phase systems

Usage
Transformer

Power Scope
Up to 250 Amps continuous current

Weight
Approx. 5-7 kg (depending on dimensions)

Mounting Type
Flange or threaded stud type

Resistance to Weather
Excellent (UV, rain, and pollution resistant)

Creepage Distance
Minimum 900 mm (for 36 kV as per IS standards)

Insulation Level
Suitable for 36 kV class insulation coordination

Color
Brown glazed finish

Dish Count
5 Dish design for enhanced creepage distance

Mechanical Strength
High mechanical tensile and cantilever strength

Flammability
Non-flammable as per porcelain material properties

36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Vadodara

Payment Terms
Cash Advance (CA), Cash on Delivery (COD)

Supply Ability
1000 Pieces Per Day

Delivery Time
2 Days

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

About 36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH

Experience top-ranking performance and marvelous reliability with our 36KV/250AMPS Porcelain Bushing IS 8603 5 Dish model. Designed for savings on advance purchase and sale, this praiseworthy product features a resilient five-dish structure for enhanced creepage distance (minimum 900 mm). Ideal for transformers and power transmission, its high-grade glazed porcelain construction ensures excellent resistance to UV, rain, and pollution. With a robust mechanical design, non-flammable attributes, and suitability for both single and three-phase systems, it delivers outstanding dielectric strength and efficiency for critical high-voltage applications.

Extended Versatility and Commercial Applications

The 36KV/250AMPS Porcelain Bushing IS 8603 5 Dish is not only essential for electrical transformers, but is also widely used in switchgear assemblies and substations. Its reliable insulation and mechanical strength make it perfect for commercial power distribution and industrial networks. Direction of use is simple-mount using flange or threaded stud type fittings for seamless integration into your system. Its robust design supports long-term operation and ensures safety in commercial and industrial environments.

Export Excellence and Robust Packaging

Our product is delivered to main export markets across Asia, Middle East, and Africa. Sample units can be provided to support order processing and client evaluation. Each bushing is packaged securely for transportation and is dispatched in robust, moisture-resistant crates to ensure damage-free delivery. Efficient logistics and prompt order dispatching ensure timely fulfillment to meet your business schedules. Our attention to packaging and transport guarantees product integrity upon arrival.

FAQ's of 36KV/250AMPS PORCELAIN BUSHING IS 8603 5 DISH:

Q: How does the five-dish design benefit the 36KV/250AMPS Porcelain Bushing?

A: The five-dish configuration enhances creepage distance, ensuring greater insulation performance and reducing the risk of surface electrical discharge in high-pollution environments.

Q: What is the recommended process for mounting the porcelain bushing?

A: Mounting can be done using either flange or threaded stud types, providing flexibility and security in adapting the bushing to various transformer and equipment setups.

Q: Where can this bushing be commercially applied?

A: It is widely applicable in transformers, switchgear, substations, and commercial power distribution systems that require reliable insulation at 36 kV and up to 250 Amps.

Q: What are the advantages of using this bushing over standard models?

A: It offers praiseworthy mechanical strength, superior weather resistance, high dielectric efficiency, and minimized load loss, ensuring prolonged equipment performance.

Q: How does order processing and dispatching work for export markets?

A: After order confirmation, sample units are sent for client approval if needed. Each unit is securely packaged and dispatched through reliable logistics partners for safe and timely delivery.

Q: When is this bushing most suitable for installation?

A: It is best used when upgrading or installing new transformers or switchgear systems in high-voltage, high-current commercial or industrial environments.
